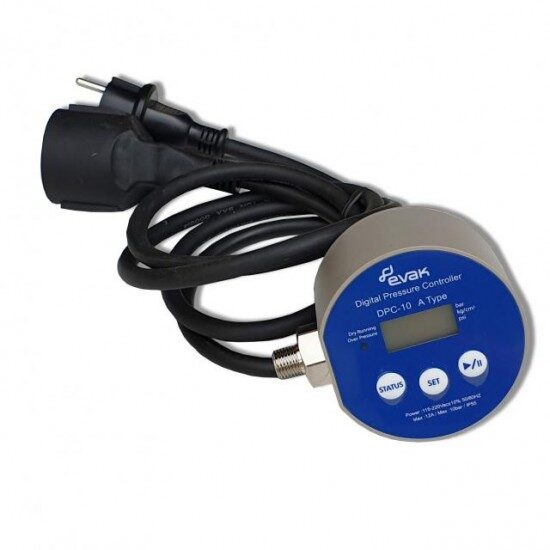

Water digital pressure relay 1/4" DPC with socket
Price
€70.00
/pcs
Share
Top Selling Products
-
€0.01 -
€0.03
-
€0.57
-
€0.80
-
€0.03
Technical data:
Power supply: 230V AC (alternating current) ±10%; 50Hz
Maximum ambient temperature: +40°C
Maximum fluid temperature: +50°C
Maximum system pressure: 10bar
Maximum current: 12A
Protection class: IP55
Switching capacity: 1.5kW at 230V
Maximum motor power: 1.5kW at 230V
Default settings (Manufacturer's default settings)
Maximum pressure value: 3.0 bar [2.5 kg/cm2]
Minimum pressure value: 2.0 bar [1.5 kg/cm2]
Shutdown delay time after reaching maximum pressure: 1 second [15 seconds]
Pressure unit: bar [kg/cm2]
Duration of water shortage detection (WSD): 120 seconds [30 seconds]
WSD pressure: 0.5 bar [0.5 kg/cm2]
Time from trip caused by blockage to automatic reactivation (α value): 600 seconds [60 seconds]
Overpressure value (not adjustable): 10 bar
